UCI Hardness Tester

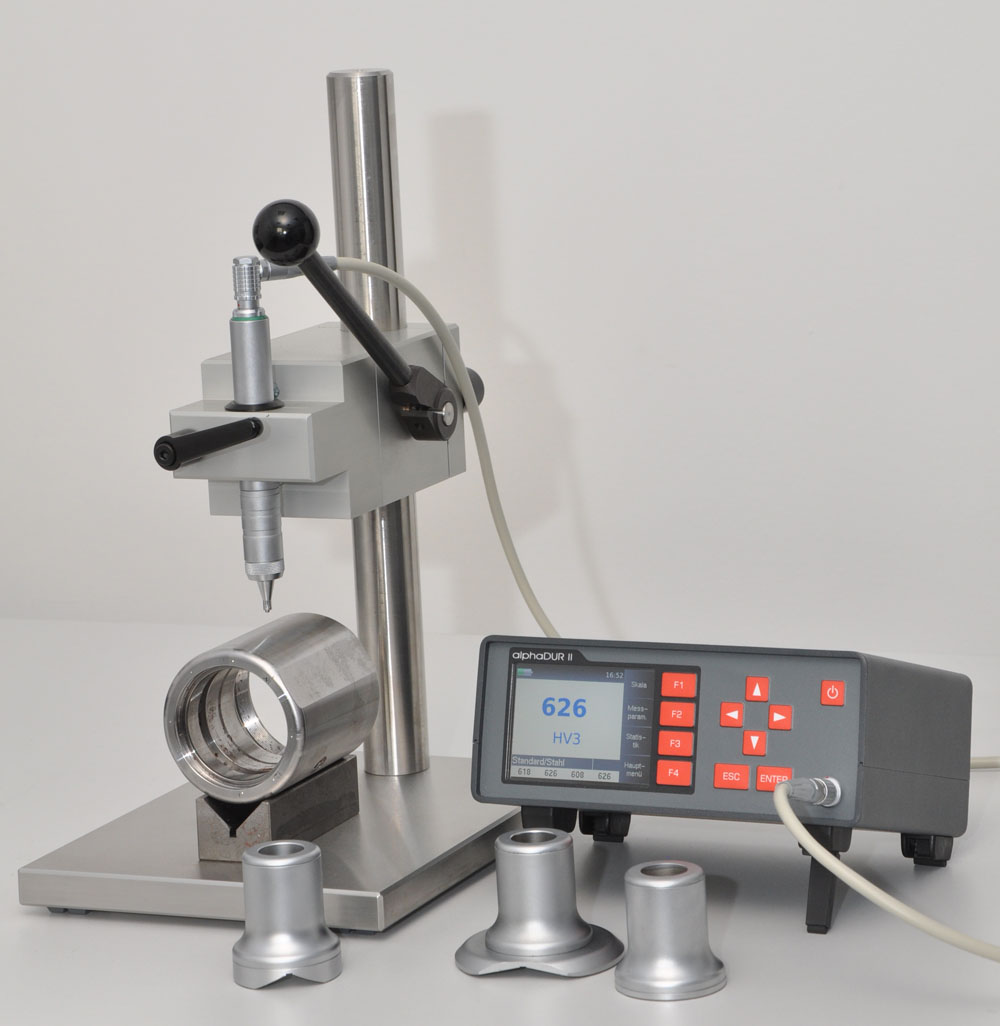

UCI Hardness Tester for testing of metals e.g. on machine parts, weld seams, coatings and hardened parts inclusive hard-to-reach places and in any direction. With the SPS-Option the alphaDUR II can be integrated in a fully automated hardness testing.

The alphaDUR II has proved it‘s worth as a   reliable and versatile hardness tester since many years. It can be employed from simple manual measurements to fully automated production testing.

The operation of the alphaDUR II is very easy because all information is shown on the large display. Hardness scale and material can quickly be changed by context-sensitive function keys.

Measurements can be done fast and accurate. The measured value is displayed directly after the test load has been applied. A test load between 1 and 10 kg can be chosen depending on the application and the sample surface.

Fast and easy hardness testing

Clear user interface with function keys

Robust metal casing

Individual material calibrations

Extensive storage and statistical functions

Applicable for automated measurements



Item

Parameter

Test load

10, 20, 30, 49 or 98 N, depending on the UCI probe

Testing materials

Preferably metals, material calibrations can be saved in the device. Testings on glass, ceramic and plastic are possible if reference measurements for calibration are performed. Minimum thickness for steel: approx. 5 mm

Hardness Scale

HRC, HV, HB, HRB and tensile strength

Display

3,5“colour LCD 320 x 240 pixels

Data

32MB Flash memory for approx. 512,000 data records with changeable classification in groups.

Memory

Storage of date, time and GOOD/BAD rating

Statistics

Average value, minimum, maximum, standard deviation absolute and relative

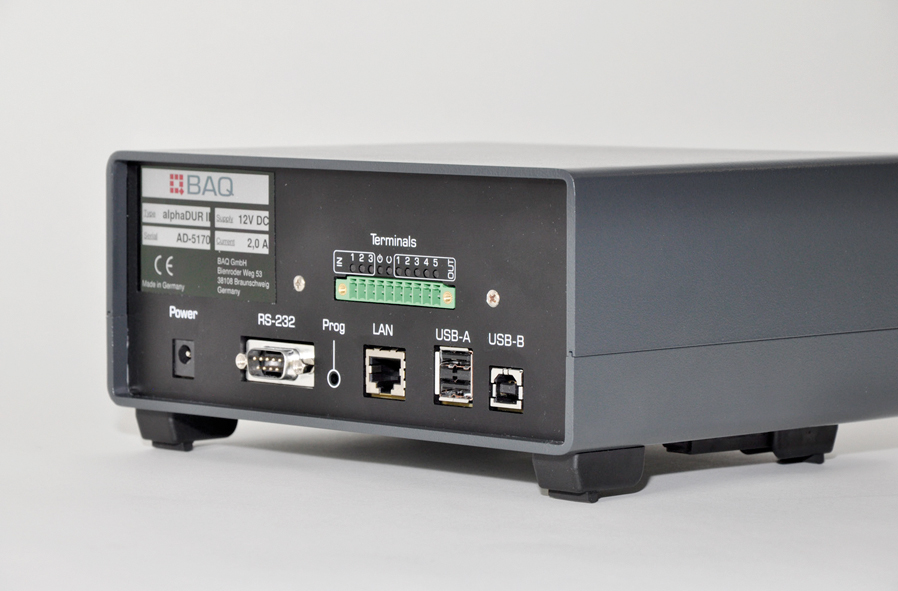

Interface

USB-Slave for connection to the PC, 2x USB-Master, 100Base-TX (Ethernet), RS-232

Power supply / battery

100 - 240 V AC NiMH-Battery: 4,8 V / 2700 mAh

Operating hours

Battery life approx. 7 h, Loading time approx. 3 h

Temperature range

Operation: 0°C to 50°C, Storage: -20°C to 70°C

Dimensions

198 x 160 x 78 mm (H/W/D) / Probe: Ø 19,5 mm, Length175 mm

Weight

Device 1400 g, Probe 190 g

 ASTM A1038, DIN 50159
