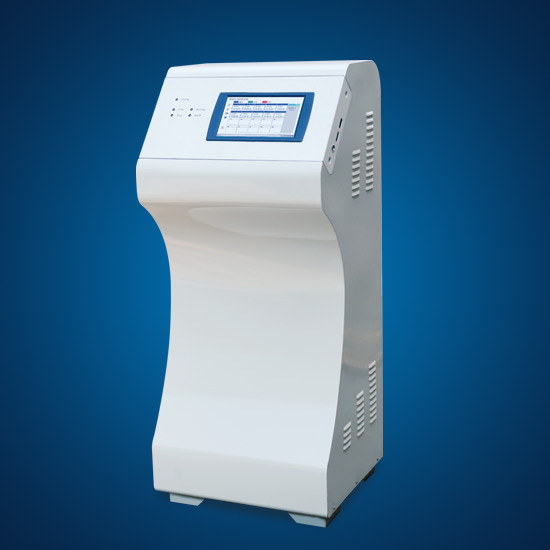

PRESSURE CONTROLLER

►  Functions of specimen pre-treatment, real time monitoring, test data storage, data power-off protection (memory) and recovering when powered on etc.

►  It is intelligent to distinguish the size and material of specimen, then provide perfect pressure rising solution and algorithm

►  For the pipes with big rate of expansion has the properties of rapid pressure rising rate and steady at constant temperature

►  Self-developed solenoid valve greatly raises its working life, further maintenance is not needed

►  Friendly display interface provides multi languages to meet the requirements of customers all the world

►  Protective measures are from electric part, mechanical part as well as software

►  Testing data memory time for pressure control unit: 7 days (offline)

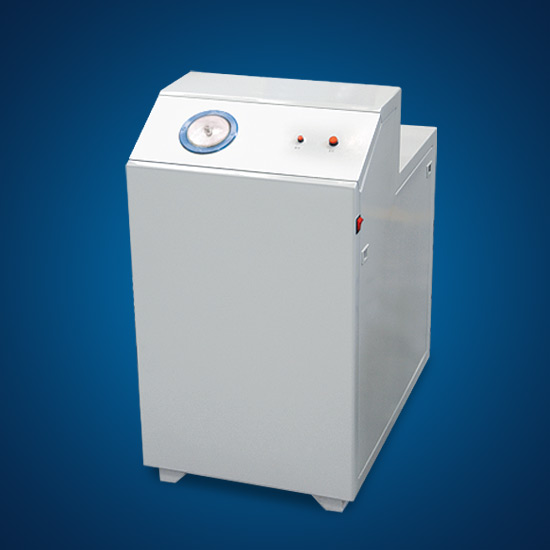

PRESSURE SUPPLY UNIT

►  One independent pressure supply unit can be connected to several pressure control units

►  With the property of high pressure and capacity

►  Wide range of pressure and pressure can be set at any level(0-100bar)

►  Automatic water compensation to avoid the pump being damage due to lack of water

►  Low noise

►  Protection system for electricity leakage or water shortage

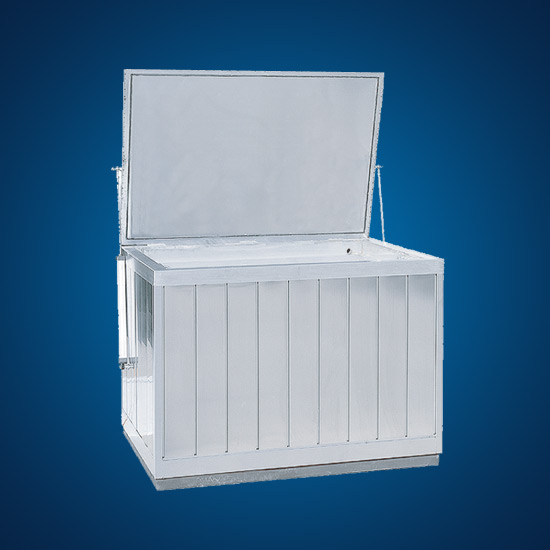

WATER TANK

►  Internal part material is stainless steel and equipped with stainless steel pump

►  With excellent thermal insulation properties, even when the water temperature up to 95 ℃, the outer cover is still at room temperature. It helps to enhance the security and save more than 70% of power consumption

►  Unique design of steam gathering device solves the problem of steam overflow from the water tank

►  Structural bracing frame provides excellent supporting capacity and anti-deforming capacity

►  Automatic water level control, if the water level is lower than pre-set value, it will re-establish automatically by introducing water in a way that the preset temperature will not fluctuate too much (fluctuation is less than 0.1℃)

►  Cover opening: pneumatic control, opening degree can be adjusted according to customer’s requirement

►  It is possible to provide multi-stations/groups and equipped with water filling device for big or small pipes

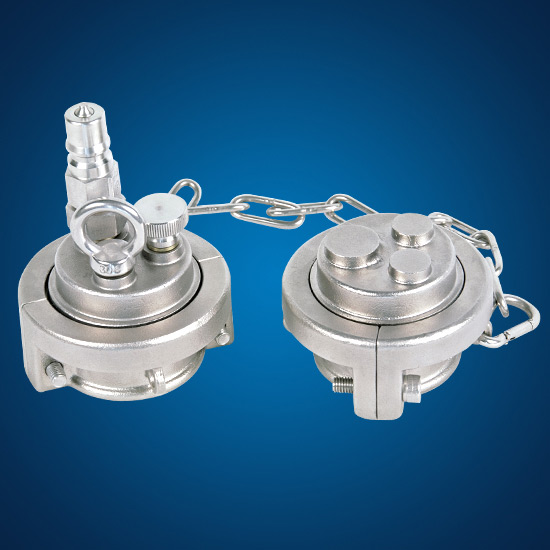

END CAPS

►  Structure ensures easy mounting and perfect sealing. Split type clamps help to realize automatic centering

►  Material: stainless steel, which will not be rust even in water at 95℃

►  Hollow-out design makes it lighter in weight, easier for observation and operation. For example, single-end weight (after assembly)of DN400 end caps less than 50kg and the weight of clamps is 7.3kg

►  End caps are produced with a specific depth from O-ring to the internal bottom which ensures that even on chamfered and oval PE pipes.

►  Stainless steel chain is used to connect upper and lower end caps to avoid the lower one go down to the bottom of water thank if specimen brittle rupture

►  Air release valve to discharge the air left in the pipe.

►  Air resource inlet and drain port are introduced to drain water after testing for big diameter end caps
