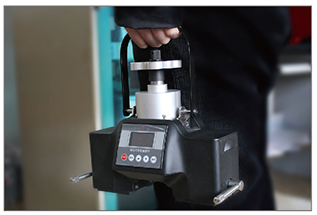

Digital Magnetic Brinell Hardness Tester

PHB-200 uses magnetic chucks, fix the Brinell Hardness Tester on the specimen surface and finish testing. It is completely based on the Brinell test principle, and the test method complies with GB/T231.2, ASTM E10, ISO6506.2.

Being used together with the Brinell Indentation Measurement System, it can be applied to quick and precise test of specimen’s Brinell hardness on site. PHB-200 can be used to test the steel parts that too large or too heavy, steel plate, pipe, mould, weld joint on boilers, pressure vessels and pressure pipes. The PHB-200 tester could replace the Leeb hardness tester which is in low accuracy and reliability

►High Reliability: It follows the Brinell hardness test method completely, the same as desktop testers, reflecting the actual mechanical property of material or parts.

►Small and Convenient: The tester has a weight of only 5.1kg, being the smallest Brinell Hardness Tester in Industry so far.

►Design of Light: The light on the test point brings much convenience for observing test procedure.

►Digital Display Function: The tester applies digital display technology to show the force value and other operating information.



Name

Digital Magnetic Brinell Hardness Tester

Test Force

187.5 kgf

Test Force Error

≦±1% Complies with GB/T231.2,ASTM E10, ISO6506.2

Indenter

2.5mm test ball

Test Range

100-650HBW

Indication Error

Complies with GB/T231.2,ASTM E10,ISO6506.2



Indication Repeatability

Complies with GB/ T231.2,ASTM E10, ISO6506.2

Operating Temperature

5-45℃

Test Piece Surface

Flat: Area ≧195× 60mm

Thickness ≧5mm

Cylinder: Diameter ≧60mm

Length ≧200mm Thickness ≧8mm

Nominal Dimension

Length 245mm × Width 105mm × Height 238mm

Weight

5.1 Kg

 GB/T231.2, ASTM E10, ISO6506.2
