► Wide Range: Measuring range from 0 to 500μm.
► High Accuracy: Accuracy is up to 2%.
► High Resolution: Resolution is up to 0.1μm

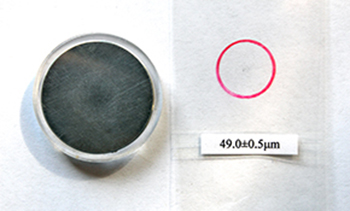

► Simple Calibration: Only two calibration points, 0 and 50μm, which can ensure the accuracy within the whole measuring range.
► Less Substrate Sensitive: Less variation when the substrate material is changed from aluminum to different substrates such as aluminum alloys, copper and brass. The error is smaller than 2μm
► Better Reliability: With high integration and stability electronic components, circuit configuration is enhanced with better reliability.
► Better Stability: With advanced temperature compensation technology, measuring value drifts very slightly with the temperature. The calibration cycle is longer.
|

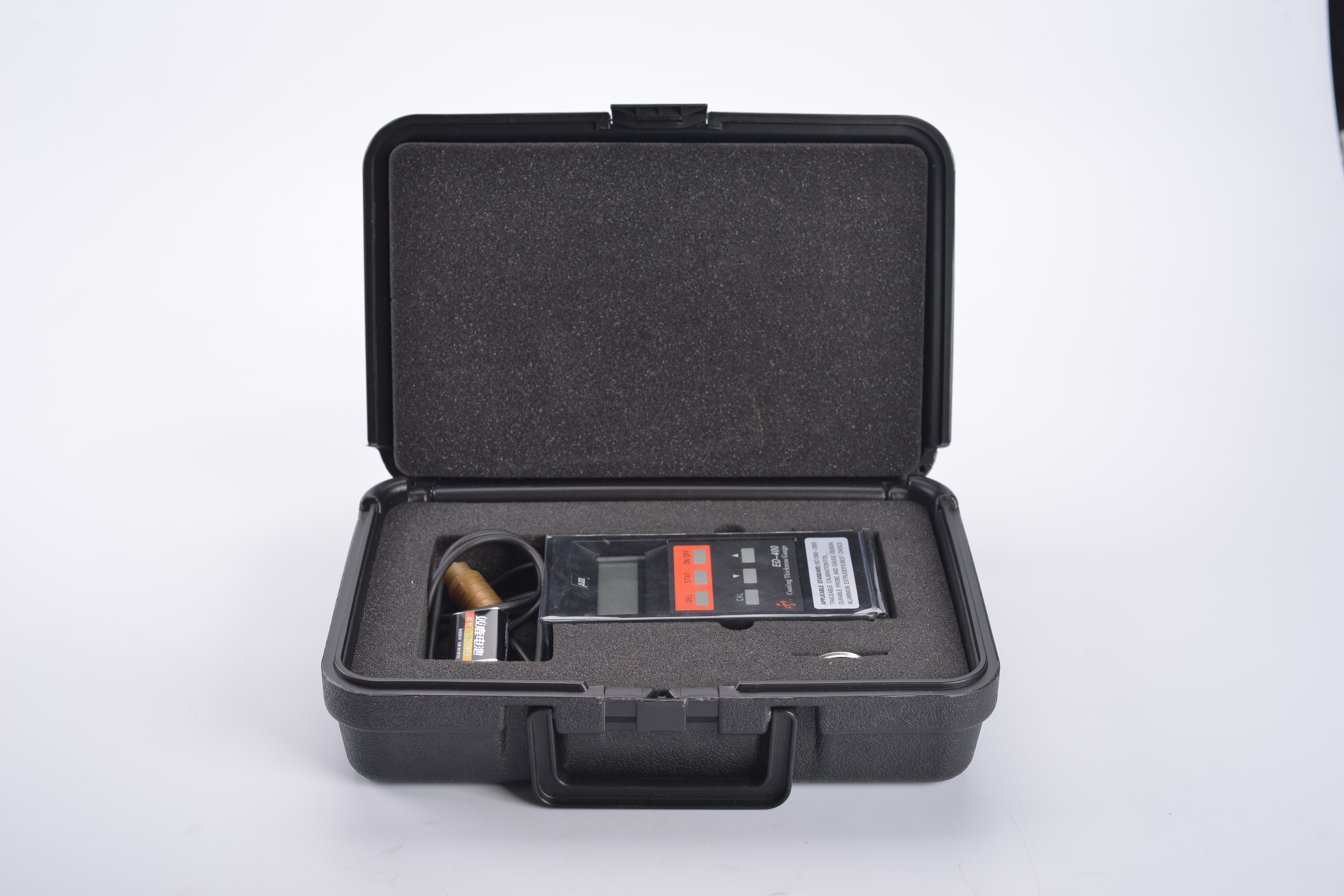

Name
|
Coating Thickness Gauge
|
|
Test Range
|
0-500μm
|
|
Accuracy
|
0-50μm: ±1μm；
50-500μm: ±2%
|
|
Resolution
|
0-50μm: 0.1μm
50μm -500μm: 1μm
0-500μm: 1μm ( optional)
|
|
Operating Temperature
|
5-45℃
|
|
Weight
|
280 gm
|
|
Dimension
|
150*80*30mm
|
