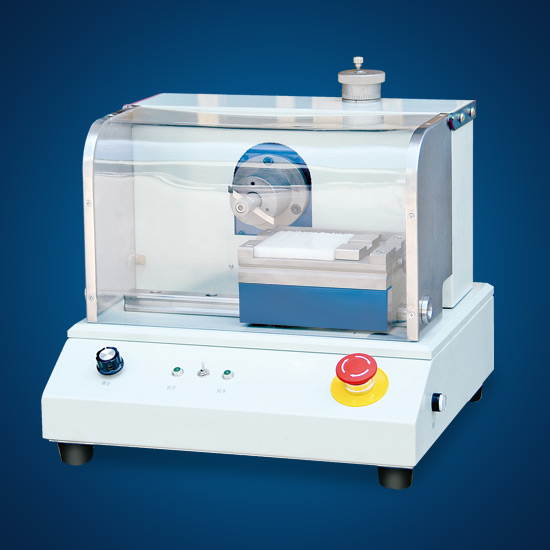

Automatic Notching Machine RTNM-11 AND RTNM-12 is designed to notch specimens for Charpy & Izod impact test.20 specimens can be clamped at one time and at least 60 specimens can be notched in 10 minutes.
► Perfect reproducibility of the notches
► Increases working efficiency
► Reduces the labor intensity
Item
Specification
RTNM-11 RTNM-21
Workable stroke
>90mm
Cutting Speed
30 mm/min
Specimen making capacity
> 100 pcs/10 min
Notch specification
According to the knives specs
Feed Mode
Hand Feeding
Automatic Feeding
Feed measurement
0-2.5 mm (optional)
10 mm
Feed stroke
Dimension
400mm x 270 mm x 300 mm
Knives Specification
Type A: 45°±0.2° r=0.25±0.05 Type B: 45°±0.2° r=1.00±0.05 (Optional)
Type C: 45°±0.2° r=0.10±0.05 (Optional)
