► Innovative design of control buttons and LCD display.
► Auto motorized turret.
► Easy to set and visualize hardness scale (HV or HK)
► Selection of force unit (gf or N) and force duration
► Adjustment of the brightness of illuminating lamp
► Built in printer
► Automatic load control
|
Model
|
RH-1000/2000 series
|
|
Lens/Indenter switch
|
With Motorized Turret
|
|
Test force
|
9.807, 4.903, 2.942, 1.961, 0.9807, 0.4903, 0.2452, 0.0981 N
1000, 500, 300, 200, 100, 50, 25, 10 gf
|
|
Loading mode
|
Program-controlled application, duration and removal of load
|
|
Duration time
|
5 – 60 sec selectable, (In step of ) 5 sec.
|
|
Measuring range
|
5 HV – 3000 HV
|
Microscope
|
Objective: 40x; 10x（For observation only, Eyepiece: 15x
Total: 600x; 150x （For observation only）
|
|
Min. detection
|
0.025/0.05 µm
|
|
Optical path
|
Measurement / Photo switch
|
|
Measuring mode
|
After taking the D1(D2) from eyepiece micrometer and entering them, the hardness value is displayed on LCD and the data can be printed out.
|
|
Max..test height
|
85 mm
|
|
Standard attachments
|
Objective 40x, 10x (Installed on tester)
X-Y Worktable (Installed on tester)
Vickers indenter (Installed on tester)
Standard hardness block (700HV & 400HV)
Sheet specimen clamp
Thin cylinder clamp
Parallel-jaw vice
Built-in printer (Installed on tester)
|
|
Power supply
|
220VAC 50Hz or 110VAC 60Hz
|
|
Options
|
|
Weight
|
19.61N / 2000gf
|
|

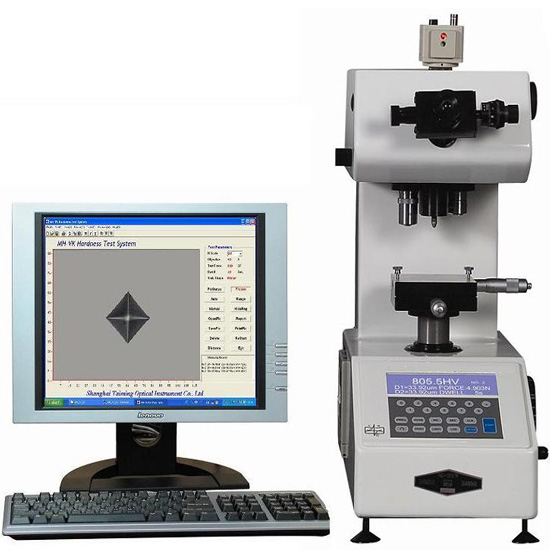

Software
|
MH_VK Hardness test software, including:
CD for MH_VK software,
Picture capture card,
CCD camera & adaptor,
Connecting tube, MicroDog,
Manual & Installing Instruction for MH_VK
|
|
On the turret
equipped with
|
two indenters (Vickers & Knoop indenters)
and two objectives (40x & 10x)
|
