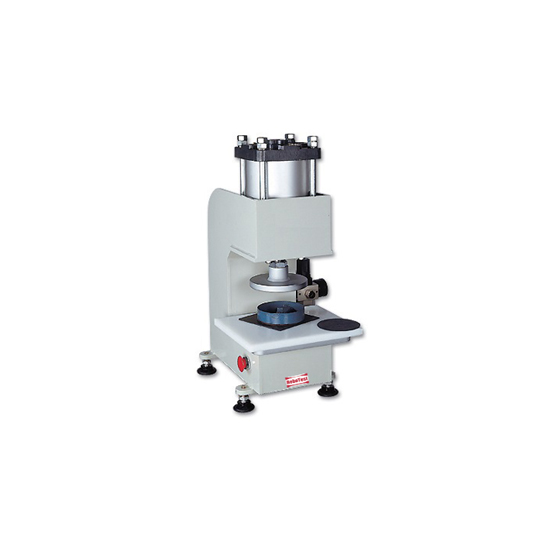

Pneumatic Specimen Cutter RT-603A with hand safety switch design ensuring utmost safety for the operators. Tester can be equipped with various cutter to prepare different shapes of specimen. It is suitable for paper, rubber, plastic and leather etc. of all kind of soft material.
RT-603C is advance version of QC-603A manual specimen punching machine. The main change are using empty oil conversion to increase machine’s output to cut hard materials. Pneumatic tester equipped with safety switch design for operator’s safety operation. In addition to use soft material, also applicable in textile, plastic sheet, high toughness and thick samples.
► Easy to Install and Simple Operation
► Power saving and time efficient
► Dual switch increases safety factor
Model
RT-603A
RT-603C
Material
Rubber, soft plastic (shore A
under 90 degree), leather
Rigid plastic (Shore A above 90
degree), fabric
Compression Platen Size
Upper platen 145 mm
( rectangle platen for option)
Lower platen260 x 230 mm
Upper platen:35 ×16cm
Lower platen:35 x 18cm
Stroke
100 mm
20 mm
Output Force
900 kg
3000 kg
Power Supply
Pneumatic
(excluding compressor)
3 ~ 6 kg/cm²
Accessory
Cutting board
Optional
Cutter
All kind of cutter type, please refer to as below or optional.
Dimension
35 × 43 × 69 cm
40×38×107 cm
Weight
55 Kg
80 Kg
JIS K6031, UL 1581
