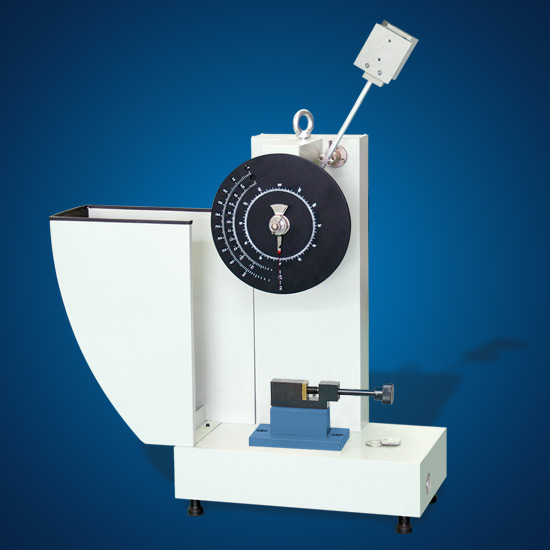

The Impact tester is an instrument used to conduct impact tests on thermoplastic materials, in order to determine their impact fragility characteristics under specifies stress conditions. There are three methods often used: Charpy and Izod. The methods used differ in the way the specimen clamped and the impact energy & speed required.
Two kinds of display are provided: digital and mechanical dial display, the digital display type tester has a function of energy losses automatic calibration. High precision, perfect stability and easy operation enable the tester to be sold all around the world.
Model
Name
Energy (J)
Speed (m/s)
Display
Standard
RT-IZA-5.5
Izod Impact Tester
1, 2.75, 5.5
3.5
Dial
ISO 180, ASTM D 256
RT-IZA-22
11, 22 (5.5)
RT-IZD-5.5
Digital Izod Impact Tester
Digital
RT-IZD-22
Common Parameter
Dimension
550×300×850mm
Net Weight
152kg
Power Supply
220V/50Hz or 110V/60Hz
Elevation of Strike
150°
