HDT Vicat Tester

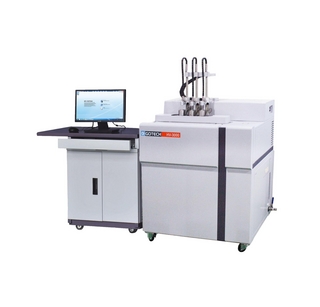

HV-3000 P is designed to measure both heat deflection temperature (HDT) and VICAT softening temperature (VST) to evaluate the thermal property of plastic material. A dedicated temperature controller is used to maintain good temperature control and steady warmup rate. Each independent station is equipped with high resolution LVDT transducer so that an accurate measurement of deflection and penetration is provided. With motorised lifting system design, you can easily raise or lower the test stations. During or after test, users are allowed to check the3 test curve of HDT or VICAT on the screen of computer system. Test results of HDT and VICAT from each test station can be automatically obtained and saved

►  Simple Operation

►  Highly accurate and excellent performance

►  3 or 6 stations available

► Comply with different standards



Display and Control

PC and dedicated software

Test Station

3 or 6

Temperature Range

Room temperature ~ 300.0 °C

Temperature Accuracy

± 0.5°C

Warm up rate

2 ± 0.2°C / min (HDT) or 50 ± 5°C / hr (VICAT)

Cooling device

Built in water piping, optional: connect with a chiller externally

Test method

HDT and VICAT

Deformation measuring range

0.001 ~ 3.500mm (LVDT)

Support span

64mm, 100mm, 101.6mm

Dimension

1100 x 650 x 850 (WxDxH) (Main Unit)

Power

1∮，AC220V，50/60Hz

 ASTM-D648   ASTM-D1525   ISO-75   ISO-306   DIN-53461  DIN 53460
