► On Site Testing: Testing the hardness of large pipes and shafts accurately on-site.
► Anvils: Testing various dimensions and shapes workpiece by using different anvils.
► Application: Chain fastened around the workpiece before the force is applied.
|
Name
|

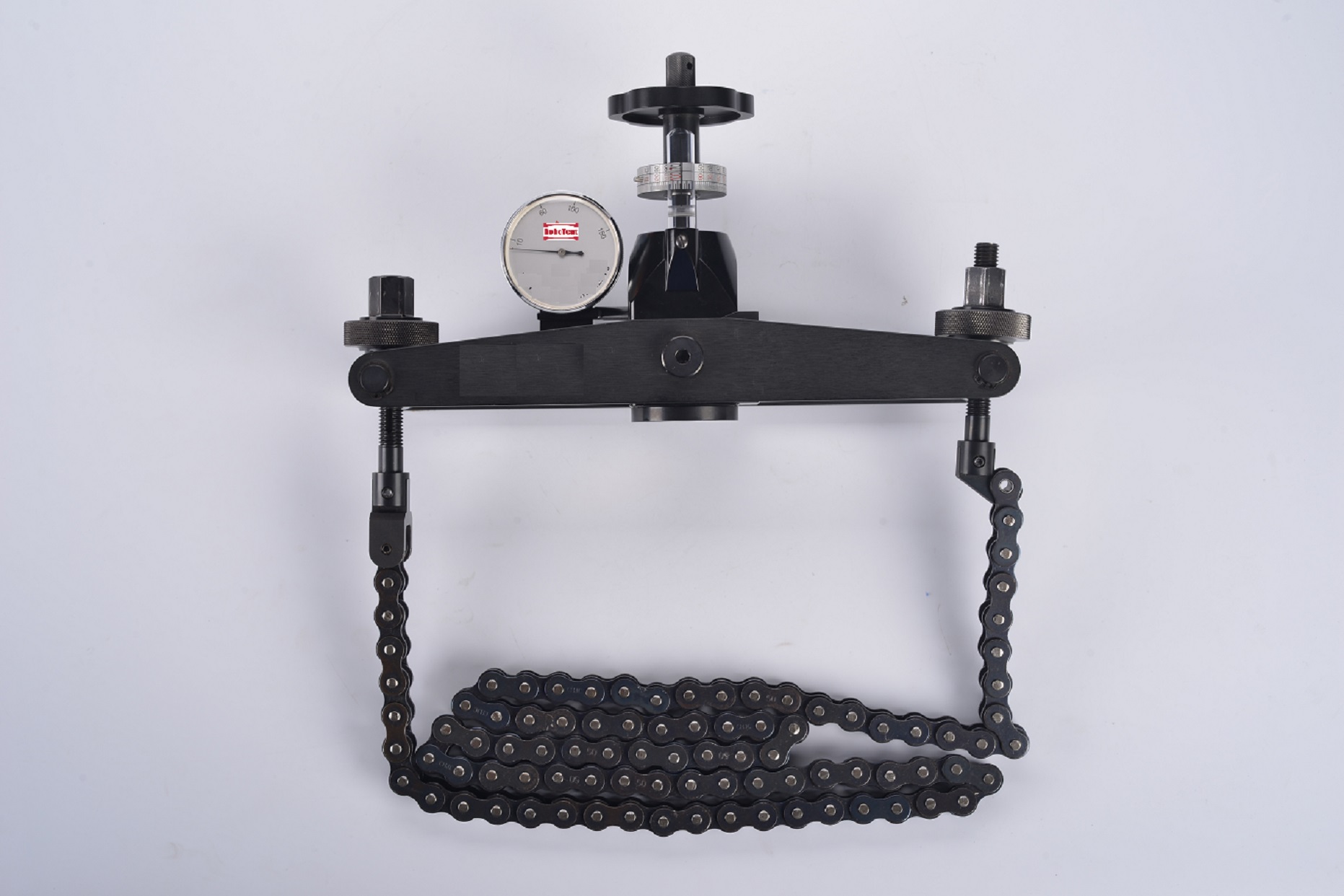

Chain Clamp Rockwell Hardness Tester
|
|
Initial Test Force
|
10kgf
|
|
Total Test Force
|
60 kgf, 100 kgf, 150 kgf
|
|
Force Applying Method
|
By Screw
|
|
Indenter
|
120°diamond cone
Ф1.588mm carbide ball
|
|
Accuracy
|
Meets the requirements of ISO6508 and ASTM E 18
|
|
Resolution
|
0.5HR
|
|
Testing Range
|
HRA, HRB, HRC, etc.15 scales
|
|
Application Range
|
All metals including iron, steel copper, aluminum, etc.
|
