C Shape Portable Rockwell Hardness Tester PHR series

PHR series C-Shape Rockwell hardness testers are designed according to the basic principle of Rockwell hardness test. The principle and structure of hardness tester is in accordance with the American Standard ASTM E110.

Compared with small type, C-Shape type applies part clamping structure and similar reading system as micrometer.

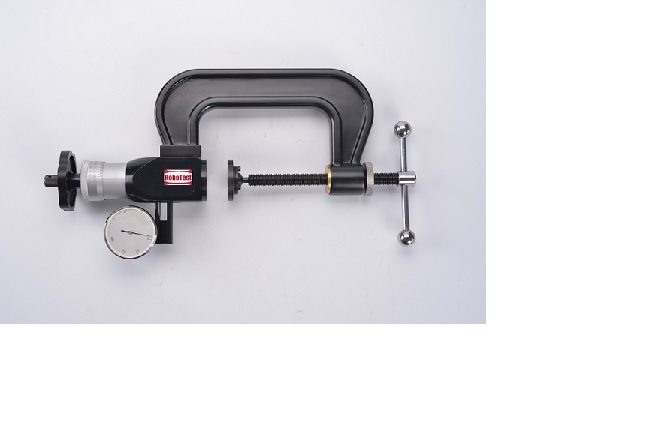

It is small, light, accurate portable hardness tester. It consists of C- shape frame, screw arbor, and test head. It could test flat or curve parts as long as the parts could be clamped and the test surface erects the test head. It could be applied in production inspection and acceptance inspection to replace low accurate Leeb hardness tester.

►  Test Principal: Follow Rockwell hardness test method and test condition and the result is reliable.

►  Simple Operation: Fix the instrument to specimen, clamp it and test the hardness of specimen. No need to move the part

►  High Reliability: Structure as simple as micrometer, accurate, convenient, repeatable.

►  Highly Accurate: Test fast, convenient, and non-destructive.  As accurate as benchtop tester, error less than 1.5HRC.



Name

C Shape Rockwell Hardness Tester

Initial Test Force

10kgf

Total Test Force

60 kgf, 100 kgf, 150 kgf

Test Head

120°diamond cone indenter, 1.588mm carbide alloy ball

Test Resolution

0.5HR

Test Range

HRA,HRB,...HRV etc,15 scales

Indication Error:

Comply with ISO 6508 and ASTM E18 standards

Repeatability Error

Comply with ISO 6508 and ASTM E18 standards

Application Range

Common metal including iron and steel, cooper, aluminum

 ISO 6508 and ASTM E18
