► Excellent Image Processing Technology: 100% recognition rate for indentations on various surface finishing
► Automatic Recognition: Manual and automatic recognition available.
► Clean and Sharp Image: Clear and sharp image from specially designed annular light source and high-grade lenses with excellent contrast.

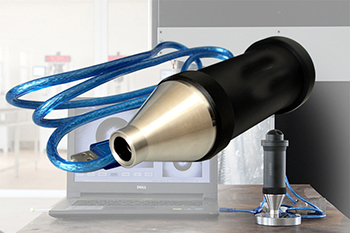

► Magnetic Inlaid Camera: Magnets inlaid camera can stick on work piece without support and easy to move

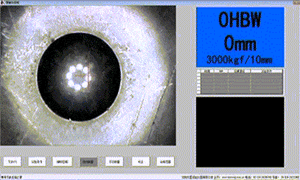

► Simple User Interface: Simple users interface and easy to use.

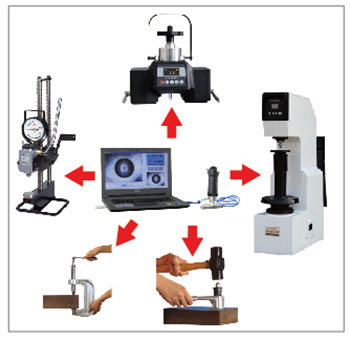

► Superior Compatibility: Works in combination with any Brinell hardness tester.
|
Name
|
Brinell Indentation Measurement System
|
|
Resolution
|
1024 X 768
|
|
Field of View
|
4.73 x 3.52 mm
|
|
Test Range
|
2.4-6mm (8-650 HBW)
|
|
Measurement Resolution
|
4.38μm
|
|
Test Condition
|
5 mm,2.5mm ball,750/250/187.5/125/62.5 kgf
|
|
Hardware requirement
|
CPU: more than 2GHz
Internal Storage: more than 2GB
Operation System: windows XP/32 bit or windows 7/32 bit
|
